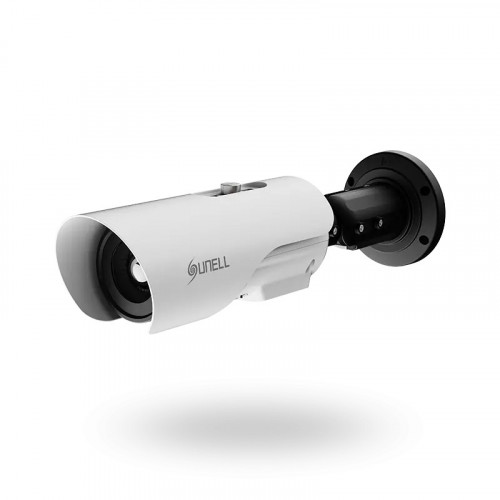

![SUNELL SN-TPC4201KT-F (III) SUNELL SN-TPC4201KT-F (III)](https://perimetroprotegido.cl/727-large_default/sunell-sn-tpc4201kt-f-iii.jpg)

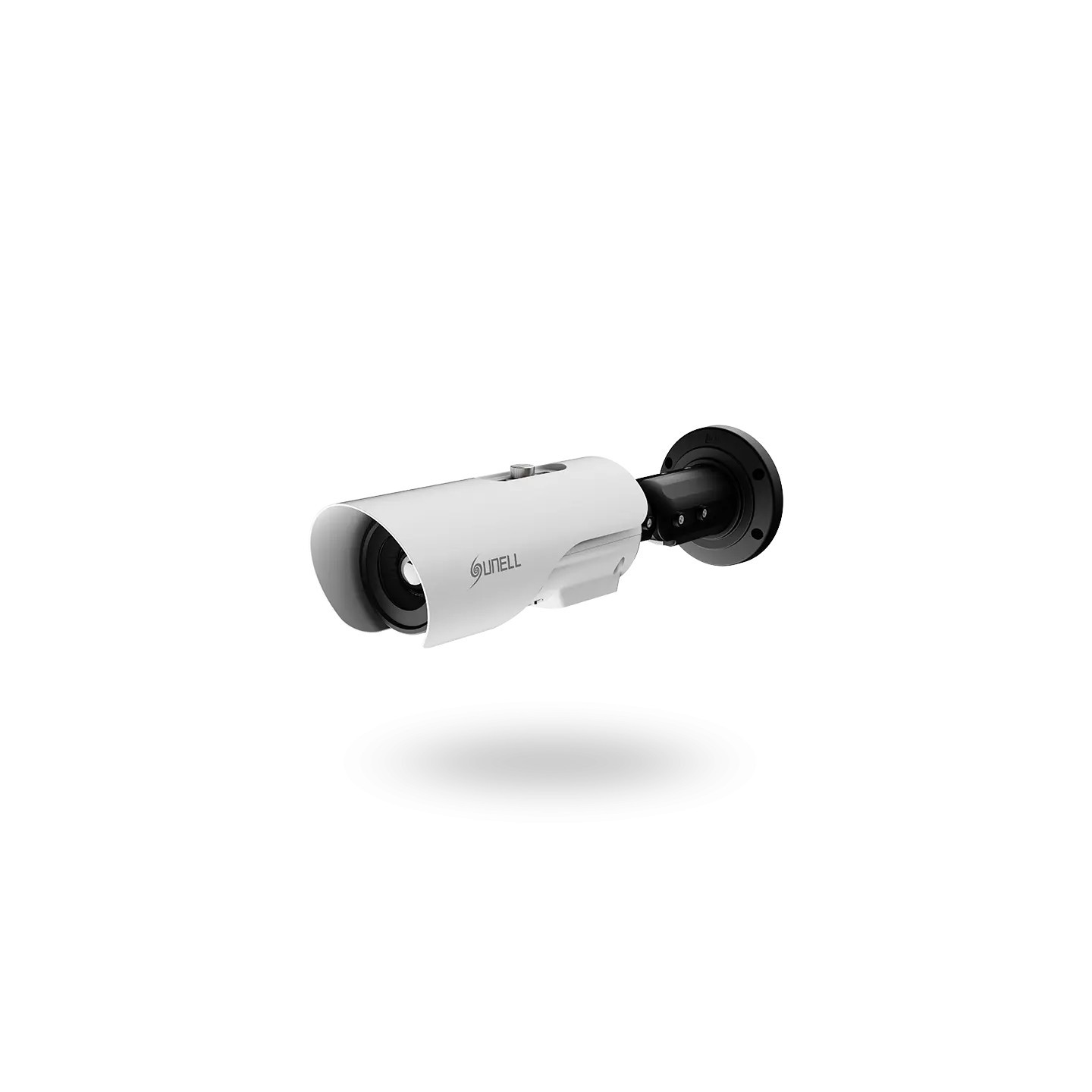

![SUNELL SN-TPC4201KT-F (III) SUNELL SN-TPC4201KT-F (III)](https://perimetroprotegido.cl/727-large_default/sunell-sn-tpc4201kt-f-iii.jpg)
- Micro bolómetro VOx no refrigerado con resolución de 400×300
- Lente fija de 8/15/25/35/50 mm opcional
- Sensibilidad ≤40mK
- Admite monitoreo de temperatura y alarma de excepción
- Rango de detección de temperatura: -20 °C a 150 °C (-4 °F a 302 °F)
- Admite 3 tipos de reglas de medición de temperatura (punto, línea, área)
- Análisis inteligente: intrusión, cruce de una sola línea, cruce de doble línea, objeto izquierdo, objeto eliminado
- 17 paletas de colores
- Mejora deimagen DVE
- Soporta fuente de alimentación PoE
- IP66
Descarga
Thermal Camera |
|||||
Detector Type |
Uncooled VOx Micro bolometer |
||||
Pixel Size |
17 um |
||||
Thermal Sensitivity (NETD) |
≤40 mK |
||||
Spectral Range |
8 ~ 14 um |
||||
Lens Type |
Fixed |
||||
Focus Control |
Manual Focus |
||||
Focal Length |
8 mm |
15 mm |
25 mm |
35 mm |
50 mm |
F No. |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
F1.0 |
Angle of View |
H: 46°, V:35.3° |
H:25.5°, V:19.2° |
H:15.4°, V:11.6° |
H: 11°, V:9° |
H: 7.7°, V:5.8° |
Detection Distance Fire(1m*1m) |
235 m |
441 m |
735 m |
1029 m |
1471 m |
Detection Distance Man(1.8m*0.5m) |
235 m |
441 m |
735 m |
1029 m |
1471 m |
Detection Distance Vehicle(4m*1.5m) |
722 m |
1353 m |
2255 m |
3137 m |
4510 m |
Recognition Distance Fire(1m*1m) |
78 m |
147 m |
245 m |
343 m |
490 m |
Recognition Distance Man(1.8m*0.5m) |
59 m |
110 m |
184 m |
257 m |
368 m |
Recognition Distance Vehicle(4m*1.5m) |
180 m |
338 m |
564 m |
789 m |
1127 m |
Video and Audio |
|||||
Resolution |
Sensor is 400×300. Image can be scaled up to 704×576 |
||||
Frame Rate |
Main Stream: 704×576 @ 25/30fps, Sub Stream: CIF @ 25/30fps |
||||
Bit Rate Control |
CBR/VBR |
||||
Bit Rate |
100Kbps ~ 6Mbps |
||||
Region of Interest |
Off / On (8 Zone, Rectangle) |
||||
Digital Zoom |
16x |
||||
Mirror |
Support |
||||
Defog |
Support |
||||
Motion Detection |
Support |
||||
Privacy Masking |
Off / On (4 Area, Rectangle) |
||||
DVE Image Enhance |
Support |
||||
Image Setting |
Brightness/Sharpness/Contrast/Mirror/FFC/3D DNR |
||||
Color Palettes |
White-hot/Black-hot/Rainbow/Ironbow etc. up to 17 modes |
||||
Audio Compression |
G.711: 8kbps, RAW_PCM: 16kbps |
||||
Intelligence |
|||||
Intelligent Functions |
Motion detection, Disk alarm, I/O alarm, Temperature detection & alarm |
||||
IVS |
Perimeter, Single Virtual Fences, Double Virtual Fences, Object Left, Object Removed |
Temperature Detection |
|
Temperature Detection |
Support 3 temperature measurement rule types (Spot, Line, Area) |
Temperature Alarm |
Over temperature alarm, Temperature difference alarm |
Accuracy |
±2℃ / ±2% |
Response Time |
≤ 30ms |
Theory of temperature measurement range |
-40°C ~ 150°C (-40°F ~ 302°F) |
Temperature display mode |
Temperature target >5℃, Display absolute temperature value, Temperature target ≤5℃, Display relative temperature value (temperature difference DEV = highest value - average) |
Network |
|
Ethernet |
RJ-45 (10/100Base-T) |
Protocols |
IPv4/IPv6 ,HTTP,RTSP/RTP/RTCP, TCP/UDP, DHCP, DNS, PPPOE, SMTP, 802.1x |
Interoperability |
ONVIF, CGI, SDK |
Streaming Method |
Unicast |
Max. User Access |
10 Users |
Edge Storage |
Local PC for instant recording, Micro SD card 128GB |
Web Viewer |
<IE11, Chrome, Firefox, Microsoft Edge |
Web Language |
English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian |
Interface |
|
Ethernet |
1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface |
1ch Audio In,1ch Audio Out |
Alarm |
2ch Alarm In,2ch Alarm Out |
RS485 |
Support |
BNC Output |
Support |
Reset Button |
Support |
General |
|
Power Supply |
DC12V/POE (IEEE 802.3af) |
Power Consumption |
Max 5 W |
Working Temperature |
-40°C ~ 60°C (-40°F ~ 140°F) |
Storage Conditions |
0~ 90% RH |
Certifications |
CE/FCC |
Ingress Protection |
IP66 |
Casing |
Metal |
Dimensions |
φ110 × 388 mm (φ4.33 × 15.28 inch) |
Net Weight |
1.8 kg (4.97 lb) with 15mm lens |
