Radar Characteristics
Radar Sensor FMCW
Radar Output Data Distance, direction, angle
Transmit Frequency 61.2~61.5GHz
Refresh Rate 10Hz
EIRP 22dBm
Power Consumption 3W
Detection Performance
Target Identification Small animals, people, vehicles
Recognition Pattern Radar triggers an alarm, linkage video review
Detection Range (Pedestrian) 1~60m
Detection Range (vehicle) 1~60m
Detection Accuracy ±0.5m
Detection Resolution 0.67m
Speed Range 0.5m/s~30m/s
Speed Accuracy 0.03m/s
Speed Resolution 0.06m/s
Angle Accuracy ±1°
FOV Azimuth: 120°, Elevation: 22°
Hardware Characteristics
Communication Protocol UDP, TCP, RS485
Network Interface 1 RJ45 10M/100M (PoE)
Alarm Interface 2ch output, 1ch intput
RS485 Support
Relay 2ch output
Physical Characteristics
Power Supply 12VDC/PoE (IEEE802.3af)
Working Temperature -40~75℃
Storage Temperature -40~85℃

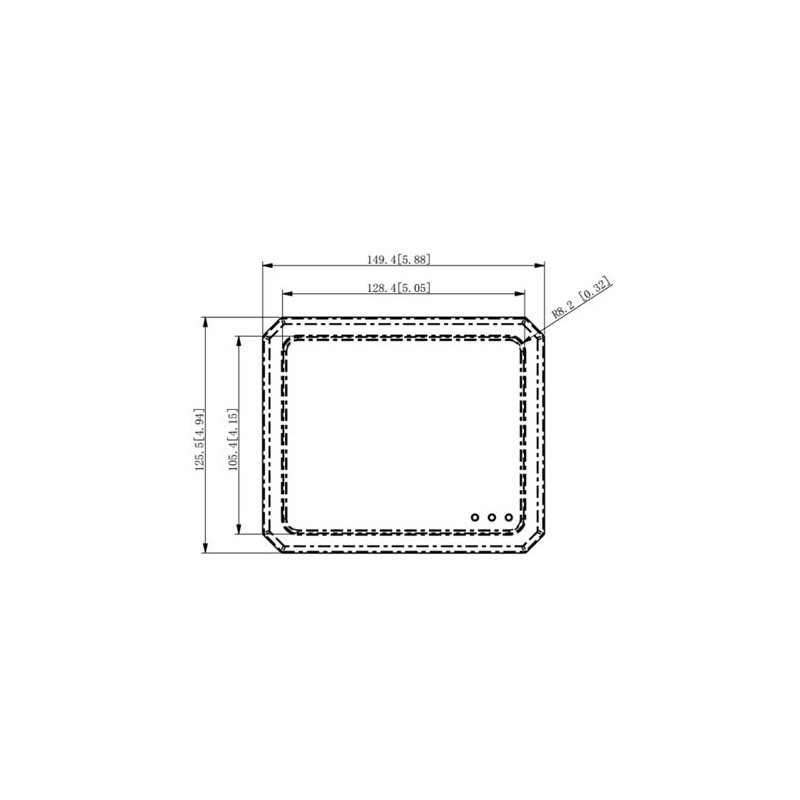

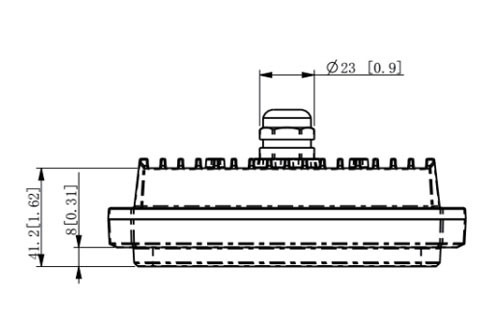

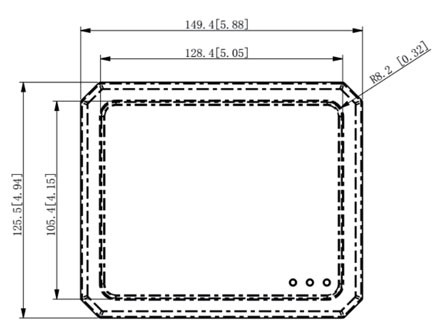

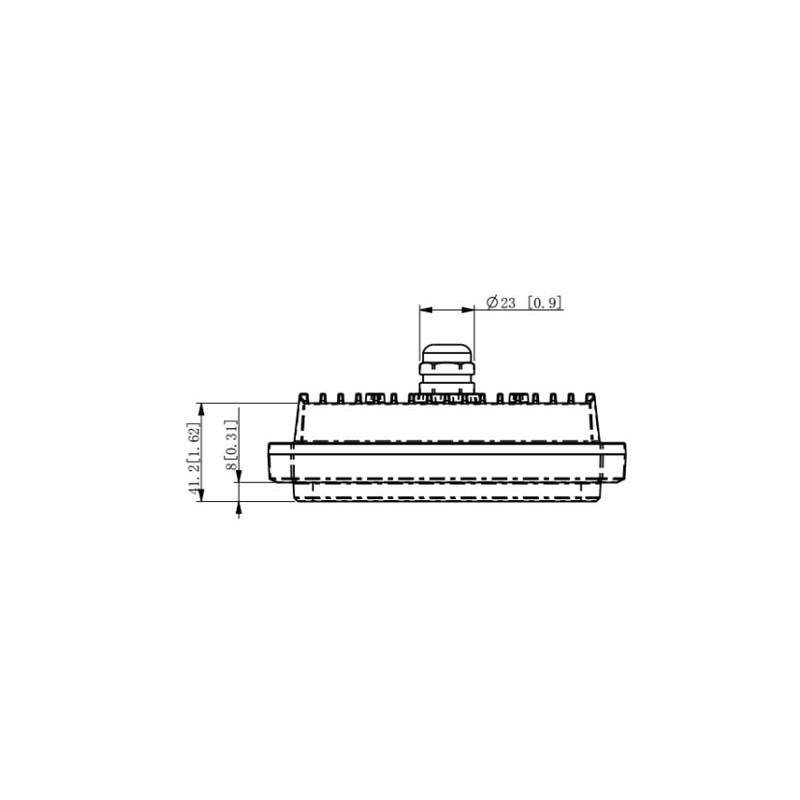

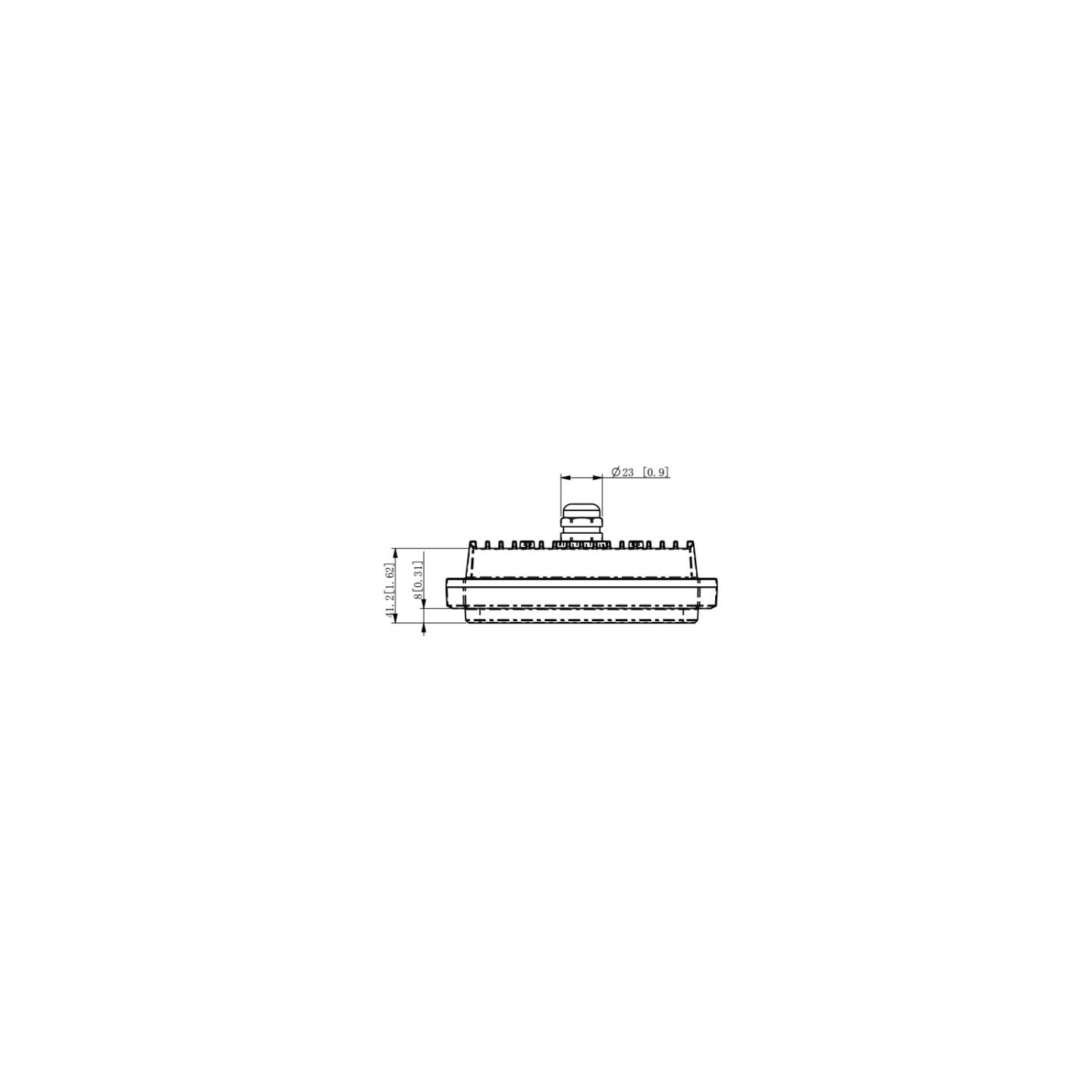

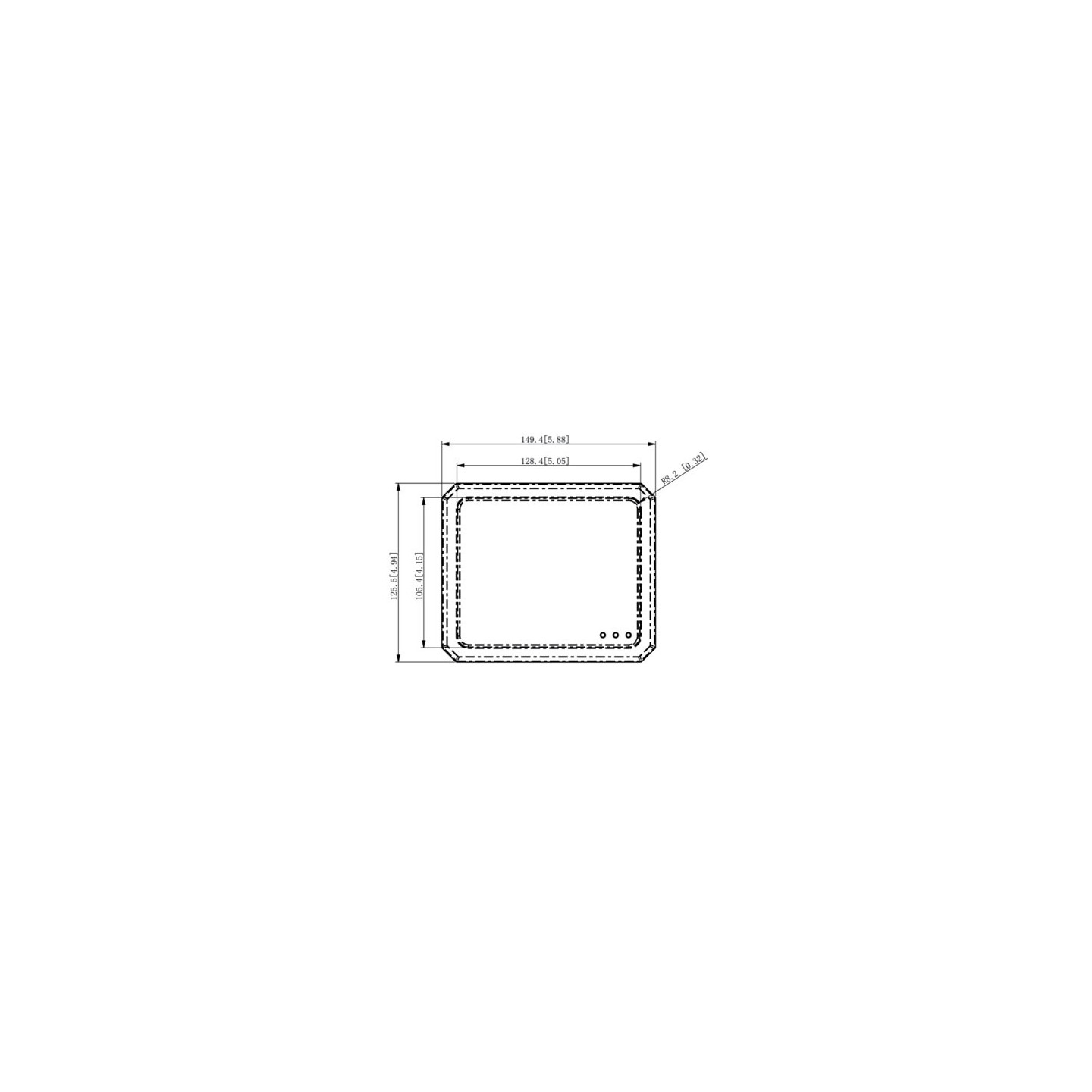

Dimension 149.4×125.5×45.2mm
Protection Grade IP66
Descarga
