Radar Characteristics
Radar Sensor FMCW Radar
Radar Output Data Distance, direction, angle
Transmit Frequency 24GHz K-Band
Refresh Rate 8Hz
EIRP 22dBm
Power Consumption 9W
Detection Performance
Target Identification People, Vehicles
Recognition Pattern Radar triggers an alarm, linkage video review
Detection Range (Pedestrian) 1~150m
Detection Range (vehicle) 1~180m
Detection Accuracy ±0.5m
Detection Resolution 1m
Speed Range 0.5m/s~30m/s
Speed Accuracy 0.03m/s
Speed Resolution 0.06m/s
Angle Accuracy ±1°
FOV Azimuth:90°;Elevation:13°
Hardware Characteristics
Communication Protocol UDP, TCP
Network Interface 1 RJ45 10M/100M (PoE)
Alarm Interface 2ch output, 1ch input
RS485 Support
Relay 2ch output
Physical Characteristics
Power Supply 12VDC/PoE (IEEE802.3af)
Working Temperature -40~75℃
Storage Temperature -40~85℃
Weight 1.0kg
Dimension 194×158×49mm
Protection Class IP66
Descarga
Radar Characteristics
Radar Sensor FMCW Radar
Radar Output Data Distance, direction, angle
Transmit Frequency 24GHz K-Band
Refresh Rate 8Hz
EIRP 22dBm
Power Consumption 9W
Detection Performance
Target Identification People, Vehicles
Recognition Pattern Radar triggers an alarm, linkage video review
Detection Range (Pedestrian) 1~150m
Detection Range (vehicle) 1~180m
Detection Accuracy ±0.5m
Detection Resolution 1m
Speed Range 0.5m/s~30m/s
Speed Accuracy 0.03m/s
Speed Resolution 0.06m/s
Angle Accuracy ±1°
FOV Azimuth:90°;Elevation:13°
Hardware Characteristics
Communication Protocol UDP, TCP
Network Interface 1 RJ45 10M/100M (PoE)
Alarm Interface 2ch output, 1ch input
RS485 Support
Relay 2ch output
Physical Characteristics
Power Supply 12VDC/PoE (IEEE802.3af)
Working Temperature -40~75℃
Storage Temperature -40~85℃
Weight 1.0kg
Dimension 194×158×49mm
Protection Class IP66
![SUNELL SN-SMWR02A SUNELL SN-SMWR02A](https://perimetroprotegido.cl/733-large_default/sunell-sn-smwr02a.jpg)

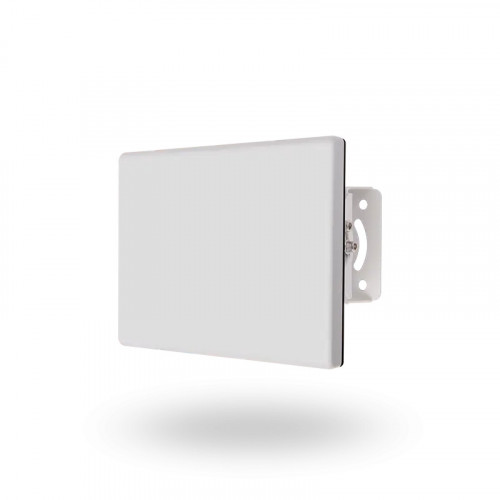

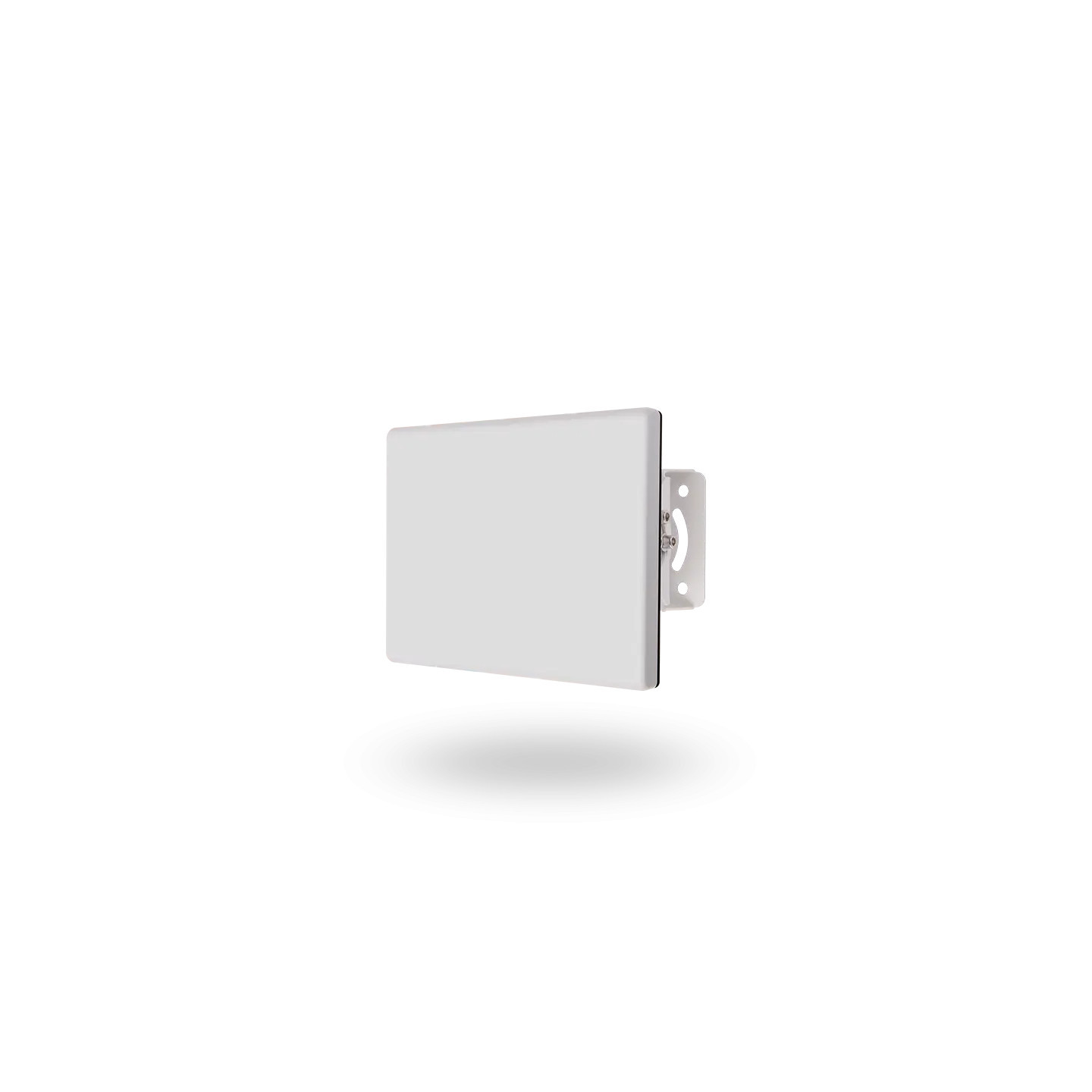

Radar de detección de área amplia
