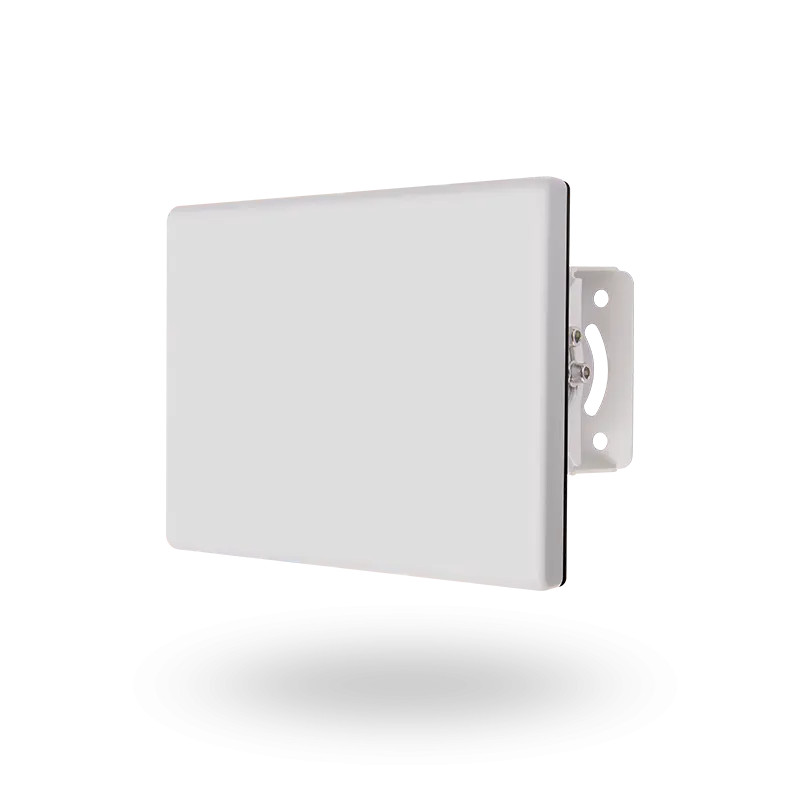

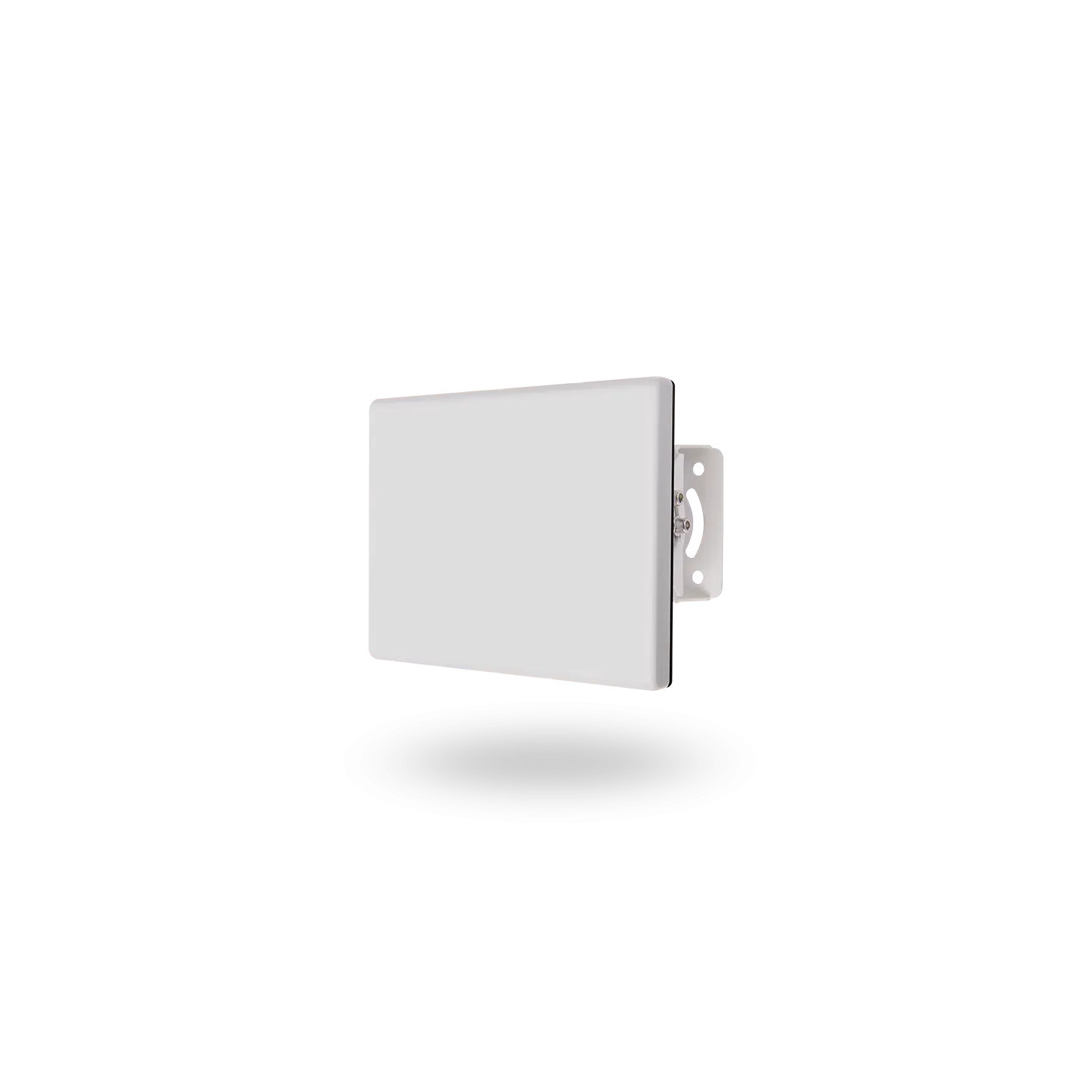

SUNELL SN-SMWR03A

Radar Characteristics

Radar Sensor FMCW Radar

Radar Output Data Distance, direction, angle

Transmit Frequency 24.00~24.1GHz

Refresh Rate 8Hz

EIRP 39dBm

Power Consumption 17W

Detection Performance

Target Identification People, Vehicles

Recognition Pattern Radar triggers an alarm, linkage video review

Detection Range (Pedestrian) 1.5~450m

Detection Range (vehicle) 1~600m

Detection Accuracy ±0.75m

Detection Resolution 1.5m @human, 6m @ship

Speed Range 0.5m/s~30m/s

Speed Accuracy 0.006m/s

Speed Resolution 0.003m/s

Angle Accuracy ±1°

FOV Azimuth:90°；Elevation:13°

Hardware Characteristics

Communication Protocol UDP, TCP

Network Interface 1 RJ45 10M/100M (PoE)

RS485 Support

Physical Characteristics

Power Supply 12VDC/PoE (IEEE802.3af)

Working Temperature -40~75℃

Storage Temperature -40~85℃

Weight 1.0kg

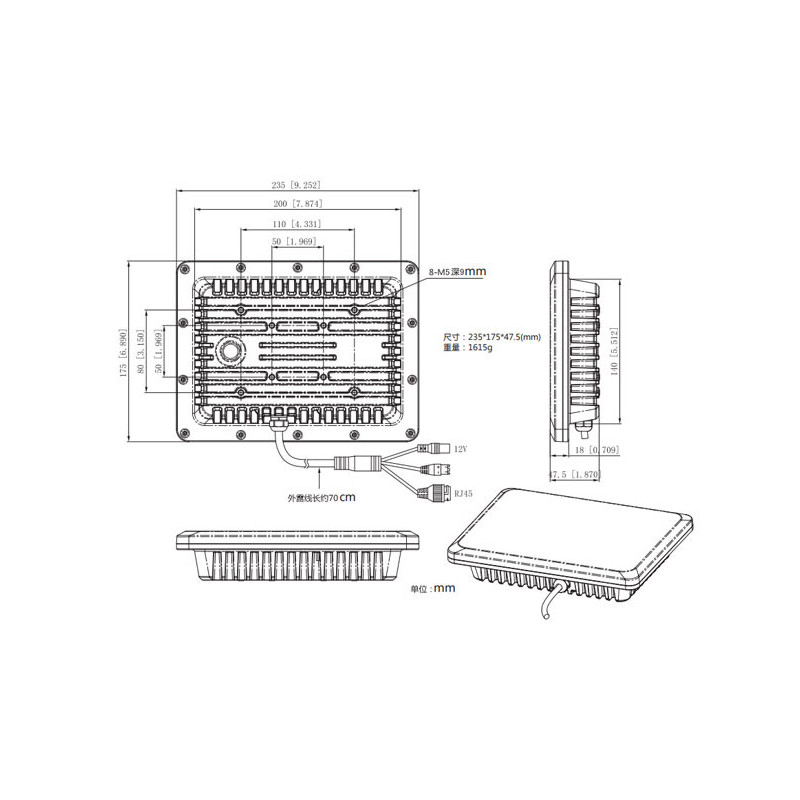

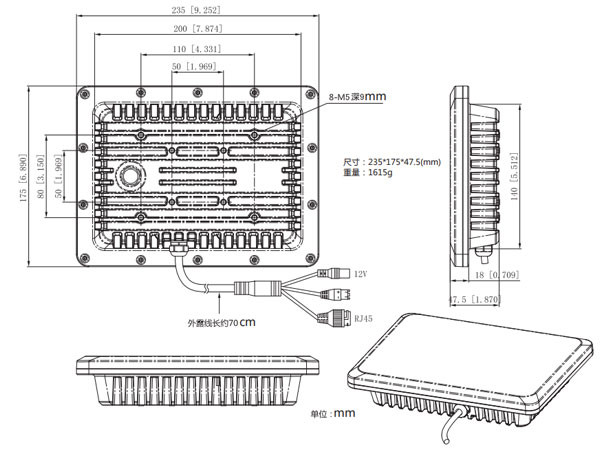

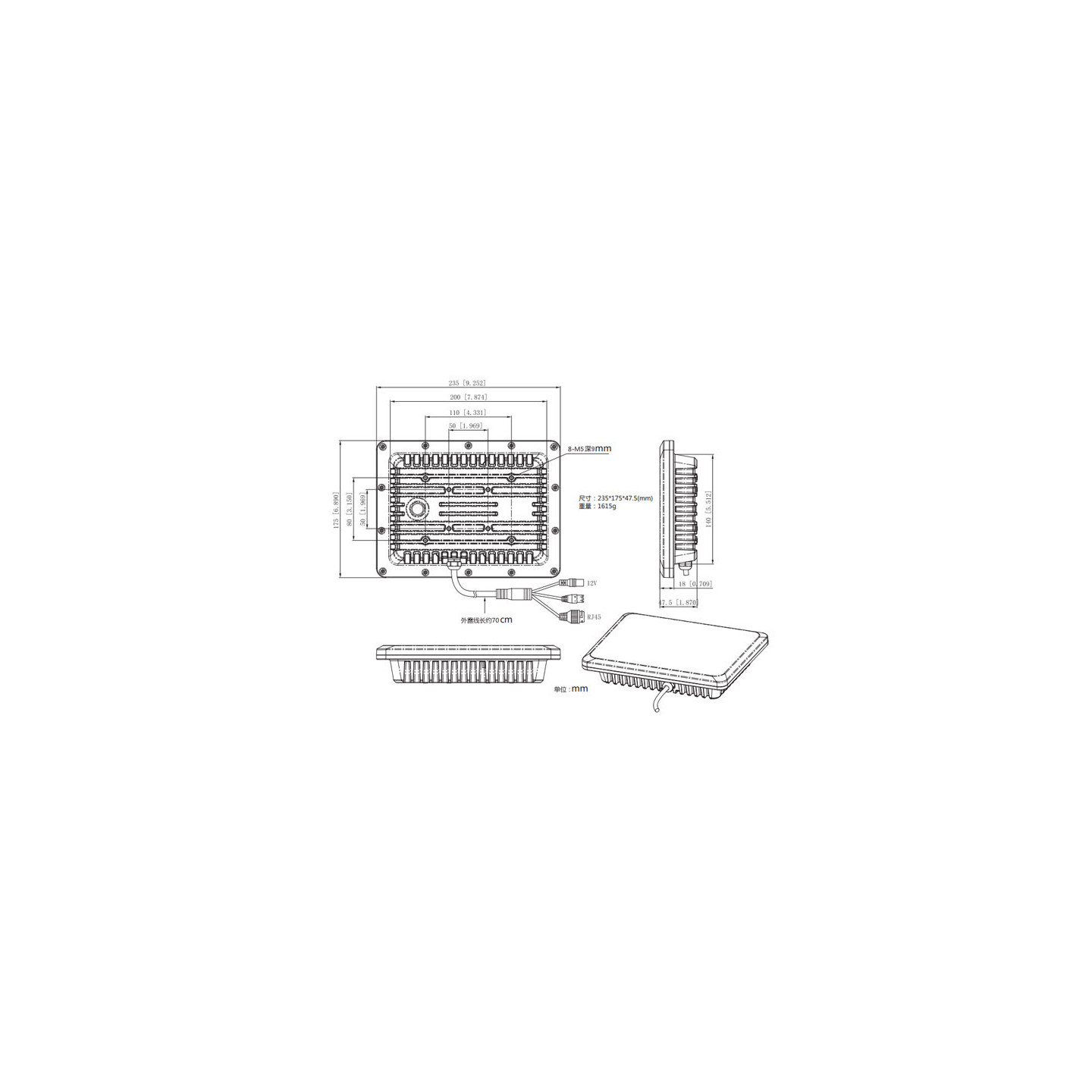

Dimension 235×175×47.5mm

Protection Class IP66
