Radar Characteristics
Radar Sensor FMCW Radar
Radar Output Data Distance, direction, angle
Transmit Frequency 24.05~24.15GHz
Refresh Rate 8Hz
EIRP 29dBm
Power Consumption 8W
Detection Performance
Target Identification People, Vehicles
Recognition Pattern Radar triggers an alarm, linkage video review
Detection Range (Pedestrian) 1~300m, 1~200m (walking/running across), 1~150m (climbing/squatting across)
Detection Range (vehicle) 1~300m
Detection Accuracy ±0.75m
Detection Resolution 1.5m
Speed Range 0.03m/s~30m/s
Speed Accuracy 0.03m/s
Speed Resolution 0.06m/s
Angle Accuracy ±1°
FOV Azimuth:20°；Elevation:13°
Hardware Characteristics
Communication Protocol UDP, TCP
Network Interface 1 RJ45 10M/100M (PoE)
Alarm Interface 2ch output, 1ch input
RS485 Support
Relay 2ch output
Physical Characteristics
Power Supply 12VDC/PoE (IEEE802.3af)
Working Temperature -40~75℃
Storage Temperature -40~85℃
Weight 1.0kg

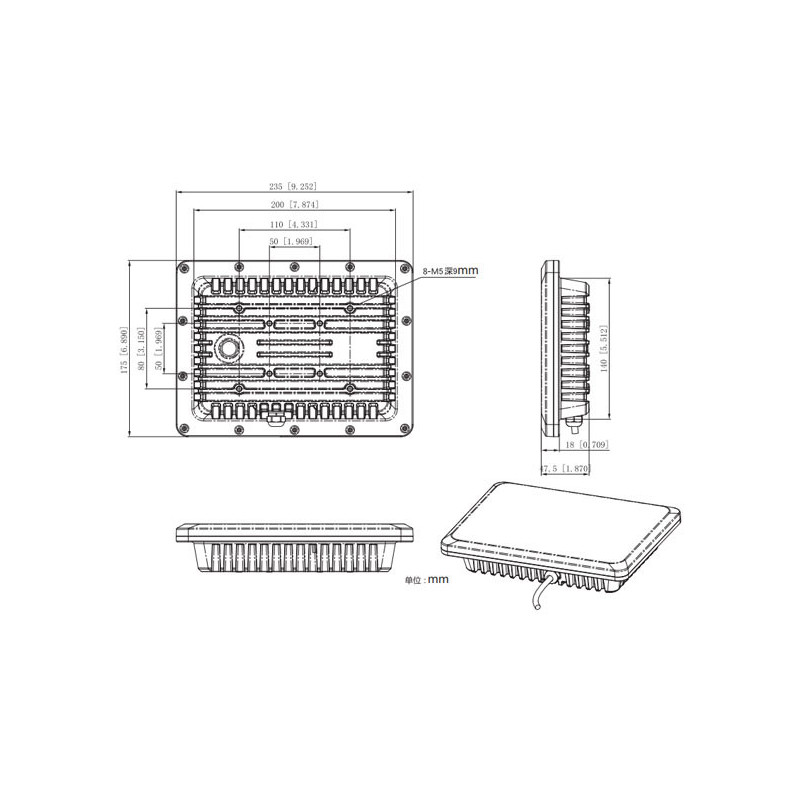

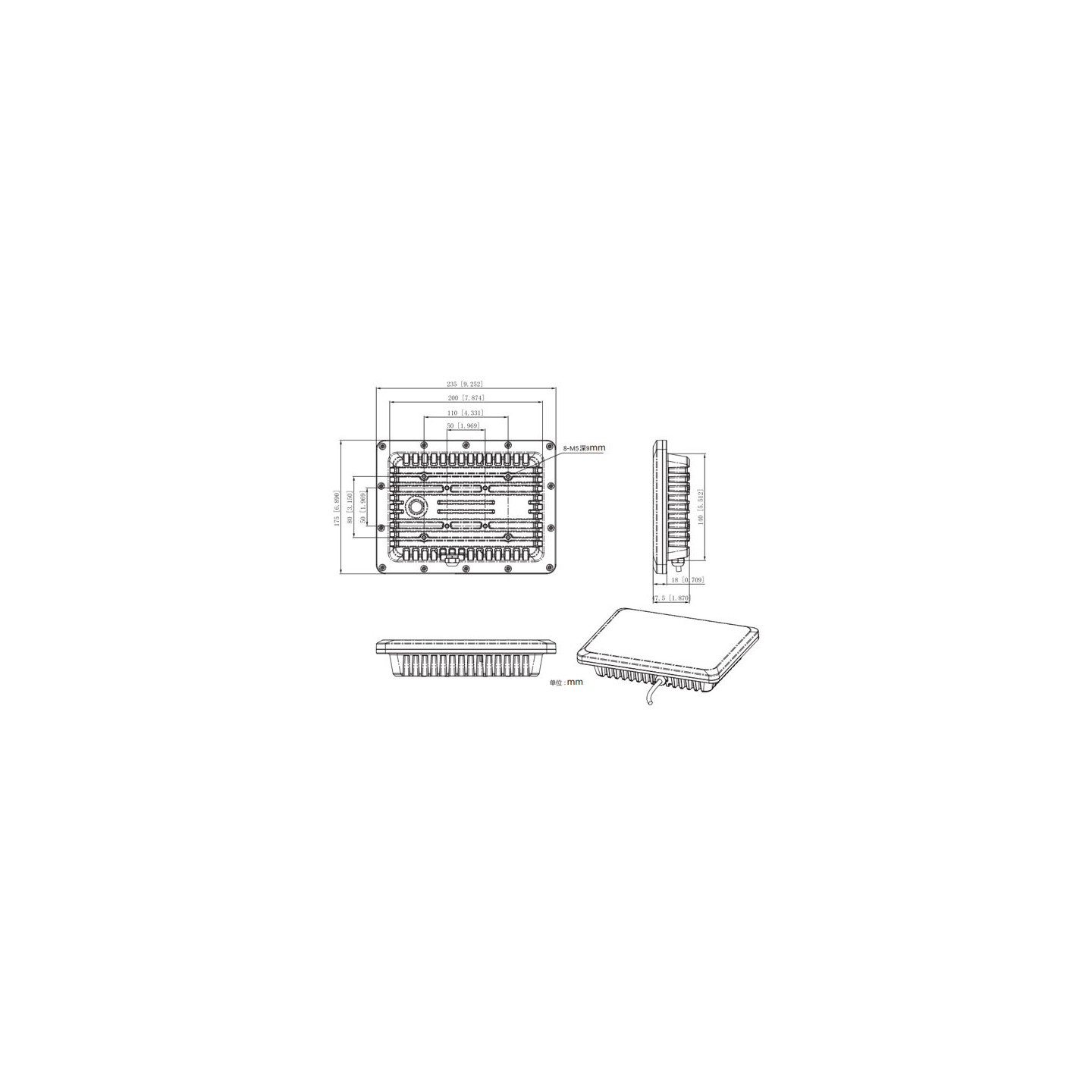

Dimension 235×175×53.7mm
Protection Class IP66
